Hexagonal electrohydraulic modules for rapidly reconfigurable high-speed robots

Hexel

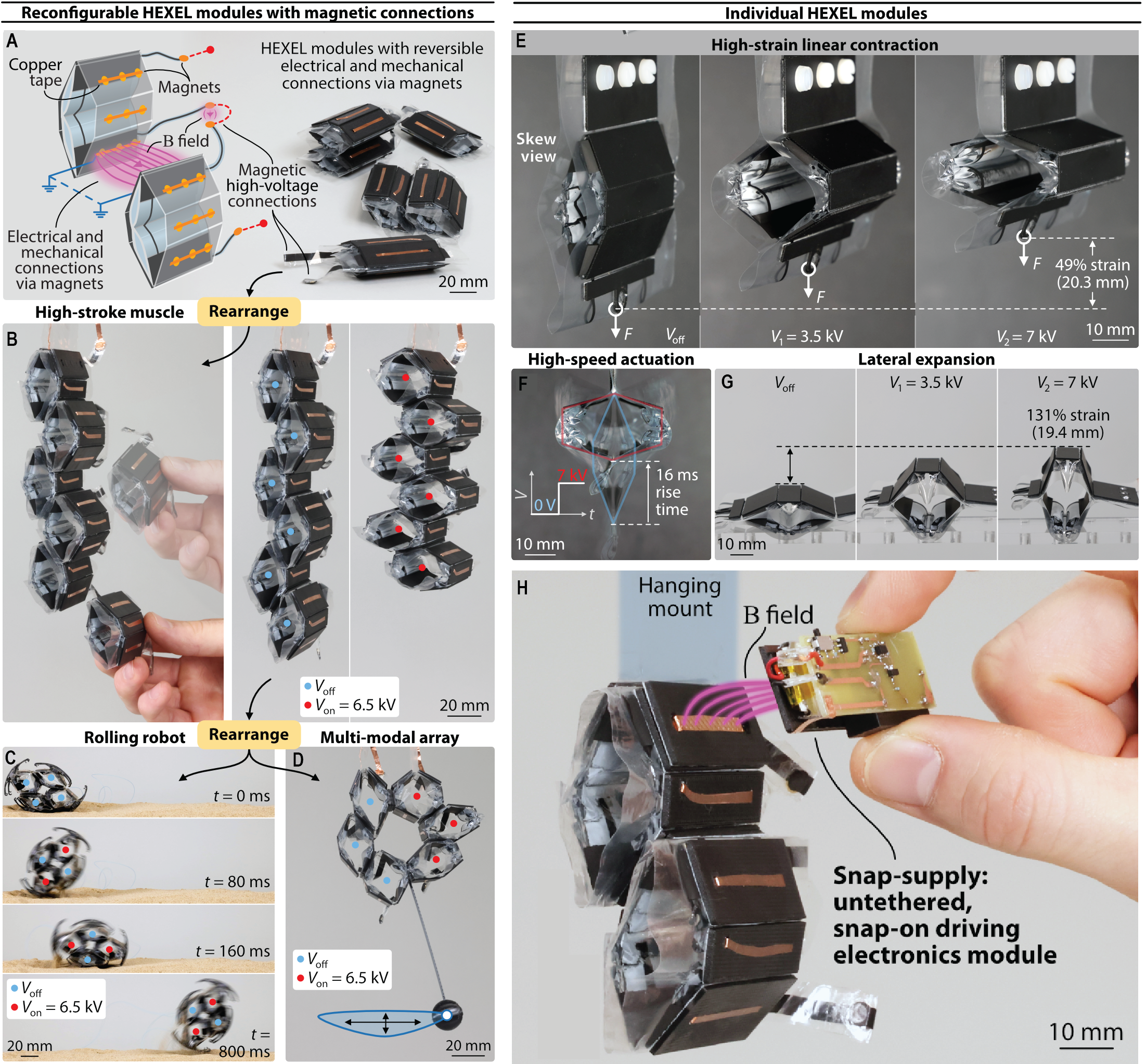

(A) Hexagonal electrohydraulic (HEXEL) modules incorporate a magnetic connection scheme for enabling rapid, reversible mechanical and electrical connections between modules for assembling into versatile robots. The same group of HEXEL modules are reconfigured into (B) a high-stroke muscle, (C) a rolling robot, and (D) a multi-modal active array. (E) HEXEL modules are composed of four soft electrohydraulic actuators integrated into a rigid hexagonal exoskeleton. The rigid plates amplify the shape change produced by the electrohydraulic actuators, resulting in controllable, high contractile strains and (F) high actuation speeds. (G) HEXEL modules also display controllable lateral expansion upon actuation. (H) The magnetic connection scheme of HEXEL modules allows for embedding of other magnetic accessories on their plates, such as the Snap-supply, a fully untethered snap-on driving electronics module.

Video

Members

Thumb ticker sm headshot square
Robotic Materials
  • Doctoral Researcher
Thumb ticker sm rumley headshot
Robotic Materials
  • Postdoctoral Researcher
Thumb ticker sm 1l1a6726 crop
Robotic Materials
  • Doctoral Researcher
Thumb ticker sm dsc 0061 2
Robotic Materials
Tenure track professor University of Stuttgart
Thumb ticker sm keplinger christoph geringauflo  send
Robotic Materials, Physical Intelligence
Managing Director

Publications

Robotic Materials Article Hexagonal electrohydraulic modules for rapidly reconfigurable high-speed robots Yoder, Z., Rumley, E., Schmidt, I., Rothemund, P., Keplinger, C. Science Robotics, 9, September 2024 (Published)
Robots made from reconfigurable modular units feature versatility, cost efficiency, and improved sustainability compared with fixed designs. Reconfigurable modules driven by soft actuators provide adaptable actuation, safe interaction, and wide design freedom, but existing soft modules would benefit from high-speed and high-strain actuation, as well as driving methods well-suited to untethered operation. Here, we introduce a class of electrically actuated robotic modules that provide high-speed (a peak contractile strain rate of 4618\% per second, 15.8-hertz bandwidth, and a peak specific power of 122 watts per kilogram), high-strain (49\% contraction) actuation and that use magnets for reversible mechanical and electrical connections between neighboring modules, thereby serving as building blocks for rapidly reconfigurable and highly agile robotic systems. The actuation performance of each hexagonal electrohydraulic (HEXEL) module is enabled by a synergistic combination of soft and rigid components; a hexagonal exoskeleton of rigid plates amplifies the motion produced by soft electrohydraulic actuators and provides a mechanical structure and connection platform for reconfigurable robots composed of many modules. We characterize the actuation performance of individual HEXEL modules, present a model that captures their quasi-static force-stroke behavior, and demonstrate both a high-jumping and a fast pipe-crawling robot. Using embedded magnetic connections, we arranged multiple modules into reconfigurable robots with diverse functionality, including a high-stroke muscle, a multimodal active array, a table-top active platform, and a fast-rolling robot. We further leveraged the magnetic connections for hosting untethered, snap-on driving electronics, together highlighting the promise of HEXEL modules for creating rapidly reconfigurable high-speed robots.
Video PDF DOI URL BibTeX
