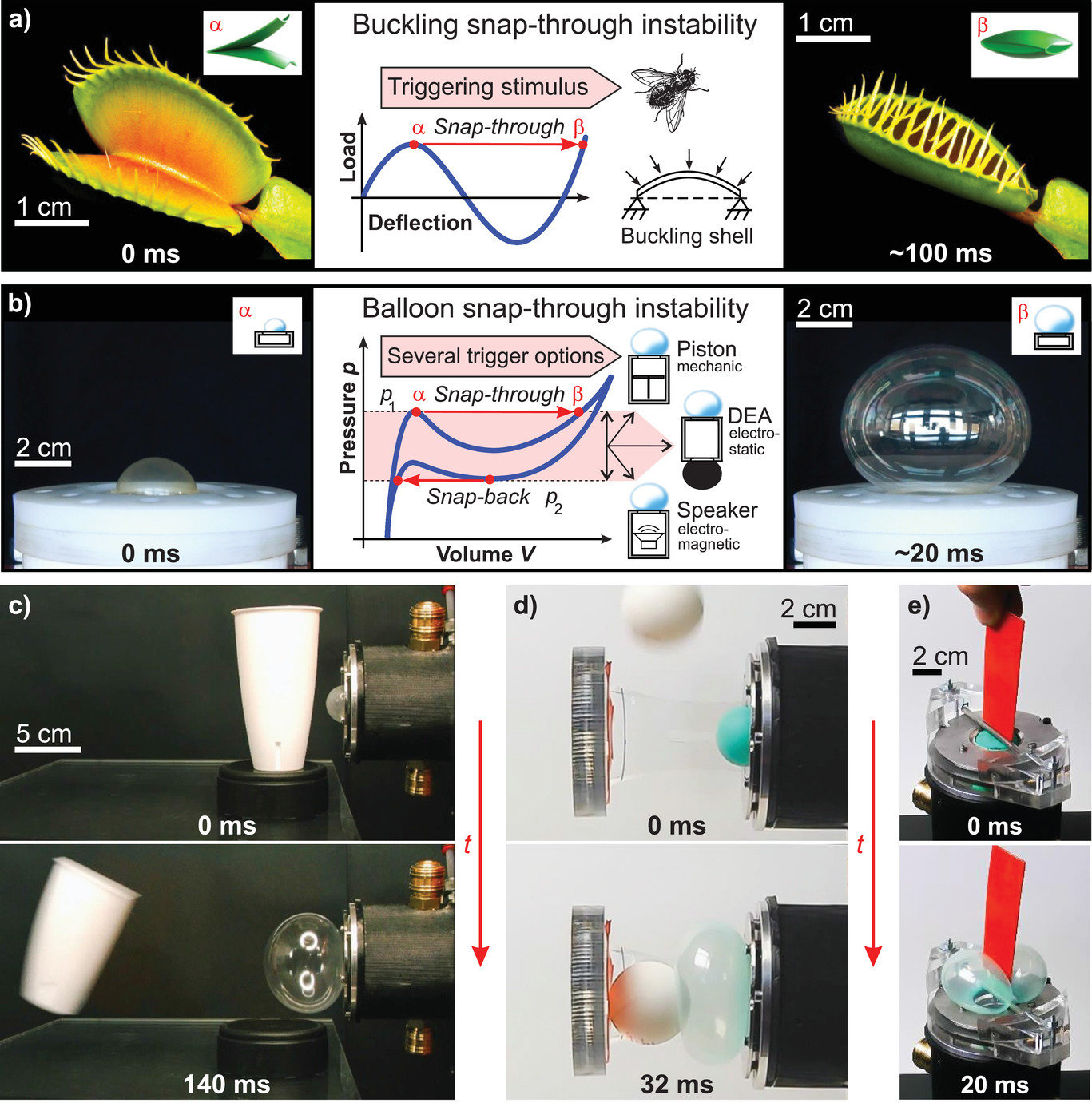

Rapid energy-efficient movements are one of nature's greatest developments. Mechanisms like snap-buckling allow plants like the Venus flytrap to close the terminal lobes of their leaves at barely perceptible speed. Here, a soft balloon actuator is presented, which is inspired by such mechanical instabilities and creates safe, giant, and fast deformations. The basic design comprises two inflated elastomer membranes pneumatically coupled by a pressurized chamber of suitable volume. The high-speed actuation of a rubber balloon in a state close to the verge of mechanical instability is remotely triggered by a voltage-controlled dielectric elastomer membrane. This method spatially separates electrically active and passive parts, and thereby averts electrical breakdown resulting from the drastic thinning of an electroactive membrane during large expansion. Bistable operation with small and large volumes of the rubber balloon is demonstrated, achieving large volume changes of 1398% and a high-speed area change rate of 2600 cm2 s−1. The presented combination of fast response time with large deformation and safe handling are central aspects for a new generation of soft bio-inspired robots and can help pave the way for applications ranging from haptic displays to soft grippers and high-speed sorting machines.
| Author(s): | Richard Baumgartner and Alexander Kogler and Josef M Stadlbauer and Choon Chiang Foo and Rainer Kaltseis and Melanie Baumgartner and Guoyong Mao and Christoph Keplinger and Soo Jin Adrian Koh and Nikita Arnold and Zhigang Suo and Martin Kaltenbrunner and Siegfried Bauer |
| Journal: | Advanced Materials |
| Volume: | 7 |
| Number (issue): | 5 |
| Pages: | 1903391 |
| Year: | 2020 |
| Month: | March |
| Bibtex Type: | Article (article) |
| DOI: | 10.1002/advs.201903391 |
| State: | Published |
| URL: | https://onlinelibrary.wiley.com/doi/full/10.1002/advs.201903391 |
| Electronic Archiving: | grant_archive |
BibTex
@article{Keplinger20-AM-SoftRobots,
title = {A Lesson from Plants: High‐Speed Soft Robotic Actuators},
journal = {Advanced Materials},
abstract = {Rapid energy-efficient movements are one of nature's greatest developments. Mechanisms like snap-buckling allow plants like the Venus flytrap to close the terminal lobes of their leaves at barely perceptible speed. Here, a soft balloon actuator is presented, which is inspired by such mechanical instabilities and creates safe, giant, and fast deformations. The basic design comprises two inflated elastomer membranes pneumatically coupled by a pressurized chamber of suitable volume. The high-speed actuation of a rubber balloon in a state close to the verge of mechanical instability is remotely triggered by a voltage-controlled dielectric elastomer membrane. This method spatially separates electrically active and passive parts, and thereby averts electrical breakdown resulting from the drastic thinning of an electroactive membrane during large expansion. Bistable operation with small and large volumes of the rubber balloon is demonstrated, achieving large volume changes of 1398% and a high-speed area change rate of 2600 cm2 s−1. The presented combination of fast response time with large deformation and safe handling are central aspects for a new generation of soft bio-inspired robots and can help pave the way for applications ranging from haptic displays to soft grippers and high-speed sorting machines.},
volume = {7},
number = {5},
pages = {1903391},
month = mar,
year = {2020},
slug = {keplinger20-am-softrobots},
author = {Baumgartner, Richard and Kogler, Alexander and Stadlbauer, Josef M and Foo, Choon Chiang and Kaltseis, Rainer and Baumgartner, Melanie and Mao, Guoyong and Keplinger, Christoph and Koh, Soo Jin Adrian and Arnold, Nikita and Suo, Zhigang and Kaltenbrunner, Martin and Bauer, Siegfried},
url = {https://onlinelibrary.wiley.com/doi/full/10.1002/advs.201903391},
month_numeric = {3}
}
